Design Blunder Almost Killed America’s Station

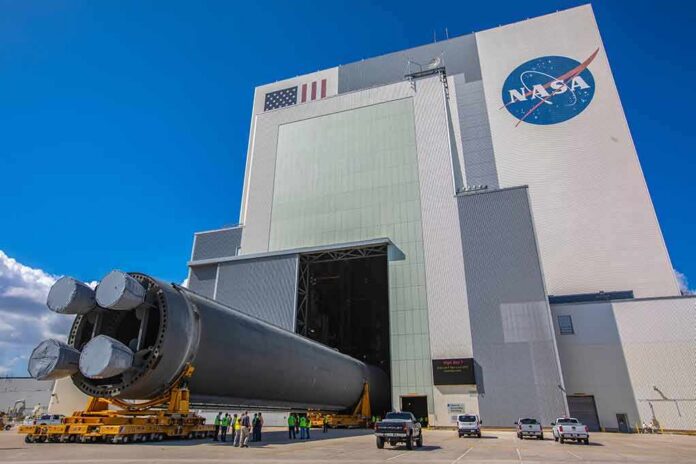

Rocket stage moved on transporter outside large NASA assembly building — Photo: Hasbul Aerial Stock / Shutterstock

The story of Skylab is not just that NASA’s first space station nearly died on the launch pad and later rained debris on Australia; it is a case study in how a major engineering failure was turned into a remarkably productive mission, and then into an early lesson about what happens when large hardware inevitably falls back to Earth.

Key Points

Skylab, a roughly 77‑ton orbital workshop, was badly damaged during launch when its thermal/micrometeoroid shield and a main solar array were torn away, leaving it hot and underpowered.
NASA engineers on the ground and the first crew in orbit improvised repairs, including a “parasol” sunshade deployed through a small airlock and a risky solar‑array freeing spacewalk, restoring the station’s habitability and power.
Despite the near‑loss, Skylab supported three crews, record‑setting mission durations, and substantial solar, biomedical, and Earth‑observation science before its orbit decayed.
When Skylab reentered in July 1979, debris scattered across the Indian Ocean and Western Australia; the Shire of Esperance famously issued NASA a symbolic $400 fine for littering.

America’s First Space Station: Big Ambition on a Budget

Skylab grew out of a pragmatic idea at the end of the Apollo era: take surplus Saturn hardware and turn it into an orbital laboratory instead of building a station from scratch. Engineers converted the third stage of a Saturn V into an “orbital workshop,” outfitting the empty fuel tank with living quarters, experiment racks, and storage. By the time it flew, Skylab weighed on the order of 77 tons—massive compared with anything previously placed in orbit. It carried two large solar array wings on the workshop and four smaller arrays on the attached Apollo Telescope Mount, along with a wrap‑around micrometeoroid shield that doubled as a thermal blanket.

Unlike later modular stations assembled piece by piece, Skylab went up essentially in one shot. A single Saturn V had to lift the entire complex, deploy its appendages correctly, and leave it in a usable orbit, ready for visiting crews launched separately on Saturn IB rockets. That architecture made launch integrity absolutely critical; there was no second chance to fix structural design mistakes on the pad once the workshop was in space.

The Near‑Catastrophic Launch Anomaly

On May 14, 1973, the last Saturn V thundered off the pad carrying Skylab—and within just over a minute, the mission’s survival was in doubt. As the vehicle passed through maximum dynamic pressure, aerodynamic forces interacted disastrously with the workshop’s micrometeoroid shield. NASA’s post‑flight analysis and a detailed anomaly report later concluded that the shield broke loose around 63 seconds into flight, peeling away from the workshop and tearing off one of the two main solar array wings in the process. Debris jammed the remaining wing against the side of the structure.

When controllers first acquired telemetry on the station after orbital insertion, they faced a compound problem: the micrometeoroid shield—also the primary thermal insulation—was gone, one solar array wing had been lost, and the other was stuck. The bare metal cylinder began to heat under full solar exposure, driving internal temperatures well above 100°F; toxic outgassing from plastics and adhesives endangered the future crews and sensitive film and food stores. At the same time, available electrical power was limited to what the smaller telescope‑mount panels could produce, far below design levels.

Contemporary reporting was blunt. A New York Times account later tied the failure to design oversights and poor communication during construction, noting that the damage “nearly resulted in the complete loss” of the $2.5‑billion program. Internally, NASA convened an accident investigation and tasked Marshall Space Flight Center engineers with doing what space programs rarely get to attempt: design a complicated repair and thermal workaround for a station nobody could physically touch from Earth—and do it in days, not months.

Engineering a Rescue from the Ground Up

The salvage effort became a showcase for improvisational engineering under extreme time pressure. Telemetry and ground simulations made it clear Skylab would become uninhabitable if temperatures were not reduced quickly; plastic insulation inside the workshop could melt, releasing poisonous gases. Yet the first crew, Skylab 2, was already in training for launch. Engineers at Marshall and other centers worked around the clock to design, test, and rehearse multiple repair concepts that three astronauts could execute with limited tools during spacewalks.

Three main elements emerged. First, a temporary thermal fix: an improvised sunshade that could be deployed from inside the station through a small scientific airlock. Second, an external, more robust twin‑pole sunshade concept in case the parasol proved inadequate. Third, a set of cutting tools and procedures for freeing the jammed solar array wing, which appeared to be held down by twisted remnants of the shield and structural hardware.

One of the pivotal contributions came from NASA engineer Jack Kinzler, head of the Technical Services Division, who proposed a shade modeled on a beach umbrella. The device would consist of an aluminized Mylar and nylon sheet approximately 22 by 24 feet, attached to a telescoping pole that could be extended through the 20‑centimeter‑square port of the airlock and then opened to cover the sun‑exposed area of the workshop. This low‑mass, packable design matched the constraints of crewed flight and the tiny opening available.

Skylab 2: Spacewalking to Save a “Crippled” Station

The crew of Skylab 2—commander Pete Conrad, pilot Paul Weitz, and science‑pilot Joe Kerwin—launched on May 25, 1973, only 11 days after Skylab’s deployment, with their mission effectively transformed into a rescue operation. Shortly after rendezvous and docking, they got their first close look at the damage, confirming that one solar panel was missing and the other pinned. Before entering, they executed a stand‑up EVA from the Apollo command module, attempting to free the jammed wing with a hooked pole, but the effort failed.

Once inside the workshop, the crew tackled the thermal problem. Working from procedures rehearsed repeatedly on the ground, they deployed the collapsible parasol through the scientific airlock. Time magazine at the time described the canopy as a beach‑umbrella‑like sheet of aluminized Mylar and nylon supported by a seven‑section pole; in practice, it was ungainly to maneuver in weightlessness, but it worked. Temperatures inside Skylab dropped dramatically, falling into a range compatible with long‑term habitation and scientific work.

Attention then returned to power. On a later EVA, the crew used specialized cutting tools to remove debris and structural material holding the surviving solar array wing closed. The operation required Conrad and Kerwin to work at the end of the station, wrestling with stuck metal while tethered and managing floating tools. Eventually, they succeeded; the panel deployed, adding roughly 7 kilowatts of power and transforming Skylab from a limping spacecraft to a fully functioning laboratory.

What had been a “crippled” station in press accounts now looked like a near‑miss turned engineering triumph. NASA’s own retrospective histories emphasize these repairs as proof that trained crews and ground teams could jointly recover a significantly damaged vehicle in orbit—a theme that would resonate through later programs.

From Near Loss to Productive Science Platform

With the emergency behind them, Skylab’s three visiting crews were able to deliver what the program had promised. Skylab 2, 3, and 4 set new records for mission duration and time spent in space, with stays of 28, 59, and 84 days respectively, far eclipsing prior American flights. Crew medical data from these long‑duration missions helped establish baselines for bone loss, muscle deconditioning, and other physiological changes that still inform human‑spaceflight planning.

Scientifically, Skylab made strong contributions in solar physics—using the Apollo Telescope Mount to capture high‑resolution images and spectra of solar flares and coronal structures—as well as in Earth observation and materials processing experiments. The station also became famous for more human stories, including the much‑discussed “Skylab 4 strike,” when the final crew temporarily switched off communications to protest an overpacked work schedule and forced a renegotiation of how ground planners treated crew time. In all, Skylab proved that a relatively large, single‑launch station could sustain months‑long human presence and serious research, even after a traumatic start.

The Inevitable Fall: Skylab’s Fiery Reentry

Skylab was never designed with a robust reboost capability; it had no dedicated propulsion module to regularly raise its orbit. Instead, mission planners initially hoped the Space Shuttle would arrive in time to dock with the station, attach a propulsion system, and either move it to a higher “storage” orbit or return major components. Shuttle delays, combined with solar activity that increased atmospheric drag, doomed that plan.

By the late 1970s, orbital decay was accelerating. NASA attempted limited attitude‑control strategies to adjust Skylab’s aerodynamic profile and stretch its lifetime but ultimately had to plan for an uncontrolled reentry. On July 11, 1979, the station hit the thicker layers of the atmosphere, broke apart, and incinerated in a spectacular display visible from parts of the Southern Hemisphere. Most of its mass burned up; estimates suggest on the order of a few dozen tons of debris survived to reach the surface.

The footprint crossed the Indian Ocean and into Western Australia. Near the town of Esperance, residents found fragments of metal scattered across the countryside. The event caused no fatalities and no serious injuries or large structural damage, a result officials later described as remarkably fortunate given Skylab’s size. Yet it sparked public fascination and a more serious discussion about who bears responsibility when space hardware falls from orbit.

The $400 Fine and the Early Politics of Space Debris

In the midst of the debris‑hunting and media coverage, the Shire of Esperance’s local council issued NASA a $400 fine for littering, treating the station’s remnants as a very large case of illegal dumping. The fine was largely symbolic—an assertion of local pride, a touch of humor, and a way to register that, even if the risk had been considered acceptable, residents had not exactly volunteered to host pieces of an American space station.

The U.S. government never formally paid the fine at the time, but the story took on a life of its own. Decades later, a private U.S. radio station raised funds and paid the amount on NASA’s behalf, turning the episode into a kind of cross‑continental in‑joke about space exploration’s terrestrial consequences. Underneath the levity, though, lies the germ of a serious policy problem: as nations and companies launch more—and larger—objects into orbit, their eventual uncontrolled reentries pose both physical risks and questions of liability.

Modern treaties and national laws have since clarified aspects of responsibility for damage caused by reentering spacecraft, but Skylab’s fall came early in that evolution. It highlighted how little control operators sometimes have over precisely where large structures come down and how dependent they are on orbital‑decay models and the vagaries of solar activity. It also served as a public reminder that “space junk” is not an abstract concept; sometimes, it lands in your backyard.

What Skylab Still Teaches About Space Engineering and Risk

Skylab’s story continues to resonate because it ties together three enduring themes in spaceflight. First, large‑scale engineering can fail spectacularly even in mature programs; the micrometeoroid shield design and its integration with the workshop did not survive the real aerodynamic environment of ascent, and the consequences were nearly fatal to the mission. That lesson reverberates in later mishaps, from Challenger’s O‑rings to structural anomalies in modern launchers: design margins, test realism, and communication among teams matter.

Second, human ingenuity—on the ground and in orbit—can recover from failures that would seem terminal on paper. The parasol sunshade and solar‑array repair were not part of any original mission plan; they emerged from a rapid, collaborative process between engineers, managers, and astronauts. The success of those improvisations has informed contingency planning ever since, encouraging programs to think in terms of flexible toolkits and multi‑path repair options rather than single, fragile architectures.

Third, what goes up must come down. Skylab’s uncontrolled reentry and the Esperance fine prefigure today’s debates over space debris, atmospheric reentry corridors, and the acceptability of letting large stages and stations fall where physics dictates. Even as modern missions adopt safer disposal or controlled deorbit burns, the underlying tradeoff—between cost, complexity, and risk to people on the ground—remains.

Seen as a whole, Skylab is not just a colorful historical episode. It is an early, vivid demonstration that spaceflight is an engineering discipline bound to human judgment and fallibility, but also to resilience. The near‑destruction at launch, the parasol that saved a superheated station, and the $400 reminder from a small Australian town all belong to the same arc: learning, sometimes the hard way, how to live and work in orbit.
